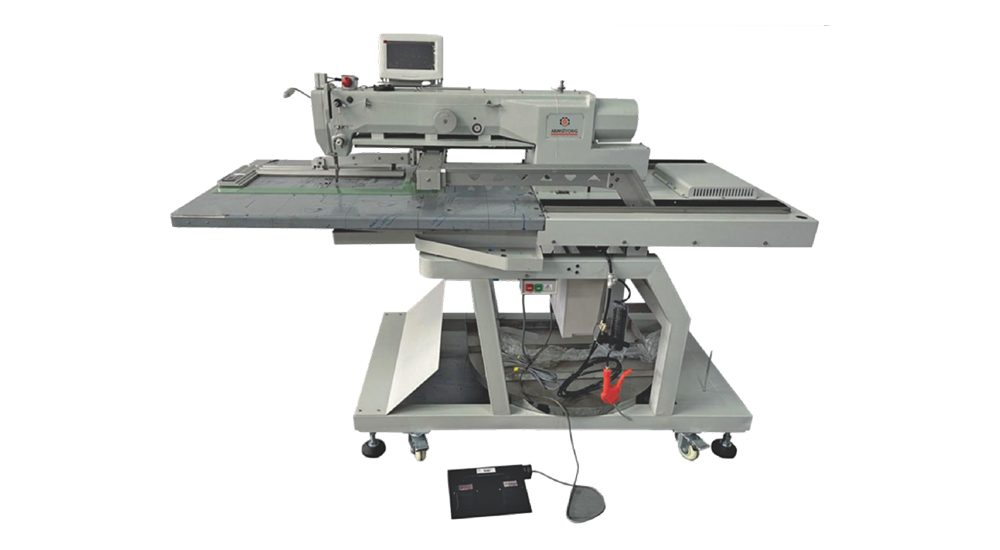

Jumbo Bag Loop Sewing Machine
Model: LU-5030
The Big Bag Loop Sewing Machine is purpose-built for sewing FIBC bag loops with precision and speed. It supports multiple working areas and speeds up to 300 mm/s, handling hook sizes from 300 mm to 800 mm and loop lengths up to 680 mm. With automatic back-tack, servo motor drive, and optional two- or four-thread trimming, it delivers consistent, high-strength stitches. Touchscreen control allows easy pattern programming, ensuring smooth, stable performance for continuous production of lifting loops used in heavy-duty bulk packaging.
Enquire Now Enquire Now Enquire Now Enquire NowFlexible Pattern Programming: Touchscreen interface enables quick setup of different bag loop sizes and stitch lengths for versatile, high-volume production requirements.
High-Speed, Consistent Output: Servo-driven system delivers up to 300 mm/s speed, maintaining uniform stitch quality even during long production runs.
Low-Maintenance Efficiency: Automatic back-tack, optional two/four-thread trimming, and reduced thread change frequency minimize downtime and operator intervention.
Heavy-Duty Performance: Supports large hook sizes and long loops, producing robust lifting straps that meet demanding FIBC strength and safety standards.
Our Process: From Idea to Installation
Engineered for high-performance lamination, cutting, and recycling in heavy-duty tarpaulin production.
