Bcs Machine
Model: BCSTek

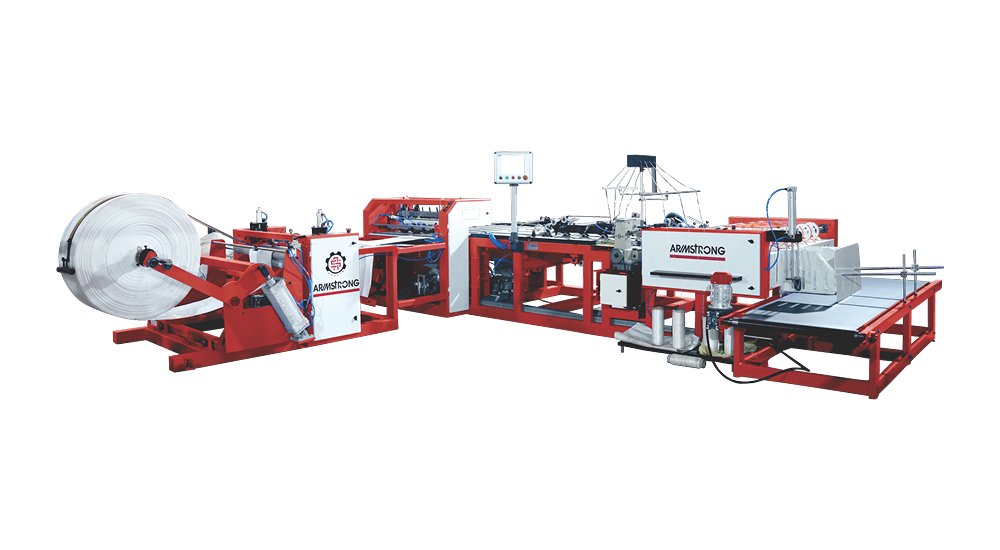

Our Bag Cutting and Stitching Machine is engineered for precision, speed, and efficiency in PP, HDPE, and BOPP bag production. Equipped with a servo motor, it ensures accurate cutting lengths while the high-speed conversion line handles cross-cutting, bottom folding, sewing, and stacking seamlessly.
Our bag conversion system is designed for fabric widths of 300–800 mm, the machine achieves impressive speeds of 30–45 bags per minute. Ideal for large-scale manufacturing, it delivers consistent quality, reduces manual intervention, and enhances overall productivity.
Enquire Now Enquire Now Enquire Now Enquire NowPrecision Cutting: Servo motor ensures accurate bag length, delivering consistent quality with minimal material wastage
High-Speed Production: Designed for 30–45 bags per minute, enabling efficient large-scale woven bag manufacturing.
Integrated Conversion Line: Seamlessly performs cross-cutting, bottom folding, sewing, and stacking in a single automated process.
Versatile Fabric Handling: Supports fabric widths from 300–800 mm, accommodating a wide range of PP, HDPE, and BOPP bag types.
Our Process: From Idea to Installation
| Parameter | Specification |
|---|---|
| Operator Requirement | 1 Person |
| Fabric Roll Capacity | Up to 500 kg |
| Bag Width Range | 12" to 32" |
| Bag Length Range | 17" to 55" |
| Production Speed | 20–35 Bags per Minute |
| Parameter | Specification |
|---|---|
| Rated Power | 15 HP |
| Actual Power Consumption | 10 HP |
| Pneumatic Requirement | 8–10 kg/cm² |
| Machine Dimensions (L × W × H) | 19 ft × 15 ft × 5.5 ft |
| Net Weight | Approx. 2500 kg |
Engineered for high-performance lamination, cutting, and recycling in heavy-duty tarpaulin production.
