Bcs Machine with Gusset

Model: GBCSTek

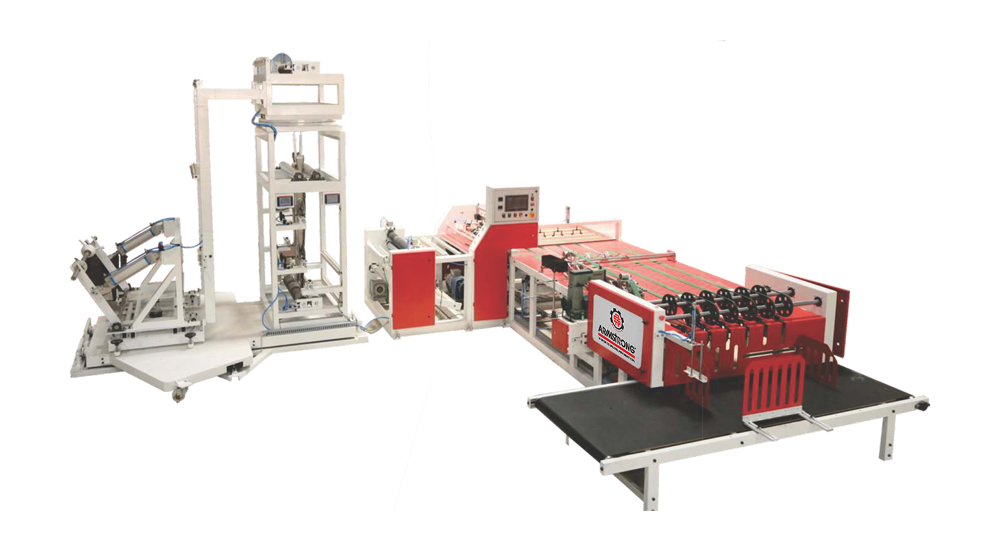

The BCS Machine with Gusset is a high-precision auto woven sack cutting machine equipped with a twist gusset device. It's the ideal choice for BOPP and laminated bags. Designed with PLC touch screen control, auto roll lifting, and I-Mark for accurate cutting, our gusseted BCS machine ensures smooth, error-free performance.

Additional features include perforation roller, heat and cold cutters, and single/double folding options. With optional attachments like D Punch, perforation micro roller, zigzag die, and easy-open sewing machine, it gets you maximum efficiency and flexibility in every cycle.

Enquire Now Enquire Now Enquire Now Enquire Now

USPs

Precision Cutting Technology: The Advanced PLC touch screen and I-Mark features ensure highly accurate cutting, delivering consistent, smooth performance with minimal errors.

Versatile Gusset Capability: The integrated twist gusset device makes it ideal for producing high-quality BOPP and laminated bags with perfect folds.

Enhanced Efficiency: Auto roll lifting, perforation roller, and heat & cold cutters streamline operations, speed-up processing and reducing downtime significantly.

Customizable Attachments : The BCS machine with gusset supports D Punch, perforation micro roller, zigzag die, and easy-open sewing machine for maximum production flexibility and adaptability.

Applications

Our Process: From Idea to Installation

Agriculture

Food Processing

Pet Food

Technical Specifications

Parameter	Specification
Operator Requirement	1 Person
Fabric Roll Capacity	Up to 500 kg
Bag Width Range	12" to 32"
Bag Length Range	17" to 55"
Production Speed	20–40 Bags per Minute
Rated Power	15 HP

Parameter	Specification
Actual Power Consumption	10 HP
Pneumatic Requirement	8–10 kg/cm²
Gusset Unit	Included – Twist Gusset Unit with 2 Sizers
Machine Dimensions (L × W × H)	26 ft × 10 ft × 10 ft
Net Weight	Approx. 3000 kg
