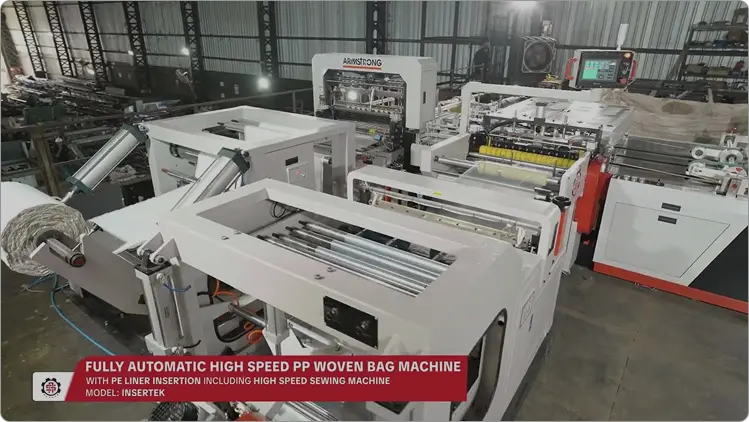

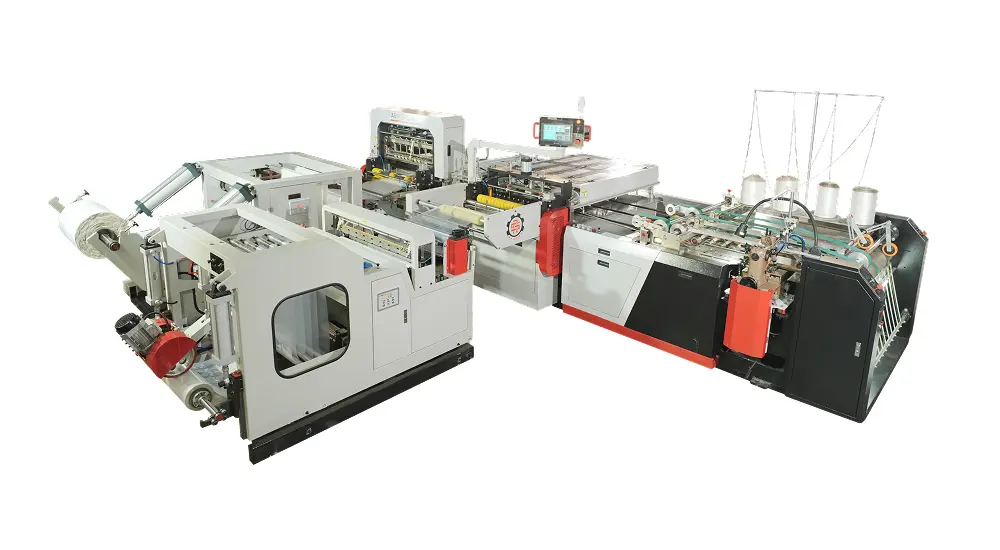

Automatic PP Woven Bag Machine with PE Liner Insertion
Model: InserTek
Armstrong Automatic PP woven bag machine with PE liner insertion is a high-efficiency solution designed for producing laminated PP Woven bags with inner PE liners for moisture-resistant and leak-proof packaging applications. This high-tech, complete PP woven bag production line takes every aspect of bag manufacture through an automated system, resulting in substantial improvements in manufacturing productivity, lower reliance on manual labour, and consistent quality of manufactured bags. This fully automated system is designed with precision, speed, and long service life as its goal; therefore, it is perfectly suited for industrial packaging of fertilisers, chemicals, cements, food grains, sugar, and animal feeds.
Enquire Now Enquire NowArmstrong is a trusted PP woven bag machine with PE liner insertion manufacturer in India, supplying advanced industrial packaging machinery for high-volume woven sack production across global markets. The InserTek model is designed for integrated PP woven bag cutting, sewing, PE liner cutting, inserting, and sewing operations within a single automated setup.
This advanced PP woven bag cutting sewing machine with liner insertion supports fabric widths from 350–700 mm and cutting lengths from 600–1200 mm while delivering production speeds of 28–34 bags per minute with cutting accuracy of ±1.5 mm for precise bag finishing and consistent output quality.
Equipped with PLC control and a user-friendly touchscreen interface, this Sugar Bag Making Machine supports both hot and cold cutting functions and features servo-controlled synchronized liner insertion for smooth and accurate liner placement. The system also includes a bag mouth opening function for easier handling during production and supports multiple bag types, including normal PP woven bags, laminated bags, and paper-plastic compound bags.
Designed for precision, durability, and reduced manual dependency, the InserTek model is a reliable high-speed PE liner insertion machine for PP bags suitable for modern packaging manufacturers looking to improve productivity and packaging performance.
| Parameter | Specification |
|---|---|
| Fabric Width (for liner inserting) | 350–700 mm |
| Max Diameter of Fabric | φ1200 mm |
| PE Film Width | +20 mm (PE film wider) |
| PE Film Thickness | ≥0.01 mm |
| Cutting Length of Fabric | 600–1200 mm |
| Cutting Accuracy | ±1.5 mm |
| Stitch Range | 7–12 mm |
| Production Speed (liner inserting) | 28-34 pcs/min |
| Power Connection | 20 KW |
| Air Consumption | ≥0.6 MPa |
| Machine Weight | About 4.5 T |
| Dimension (Layout) | 7000 × 5350 × 1700 mm |
It is a fully automated machine used for PP woven bag cutting, sewing, PE liner insertion, and bag finishing within a single production system.
The major advantages of using a PE liner
in a PP woven bag are providing a moisture barrier, providing waterproof
packaging/Leakproof, and providing improved product protection for storage and
transport.
This machine will allow both PP Woven bag
cut and sew, as well as PE liner cut, insert, and sewn automatically.
Normal pp woven bags, laminated bags,
compound bags made from paper and plastic, and industrial packaging with a pe
liner.
The machine can produce at speeds of
between 28 and 34 bags per minute, depending on model size and production
setup.
Yes, it supports hot and cold cuts via a
PLC touch screen control system.
PLC-based controls have been installed
into this machine and use a simple-to-use touch screen interface for ease of
use.
Industries such as the fertilizer,
chemical, cement, food grain, sugar and livestock feed sectors utilize pp woven
bags with PE liners.
Power requirements depend on machine
configuration and production capabilities.
Models are selected based on the speed of
production, bag size, liner requirement, and any other general packaging
application need.
