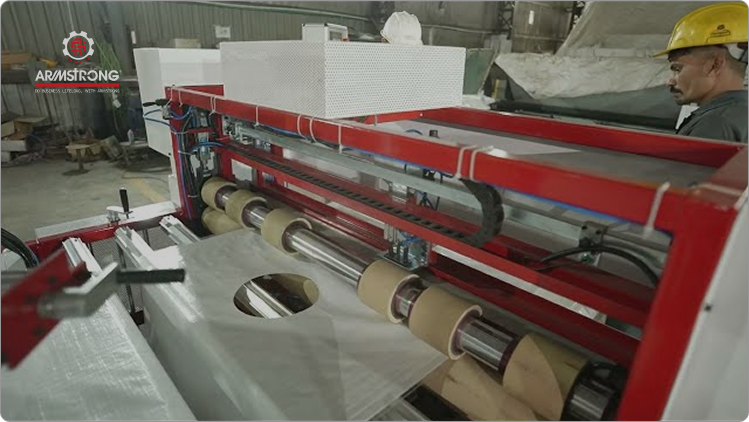

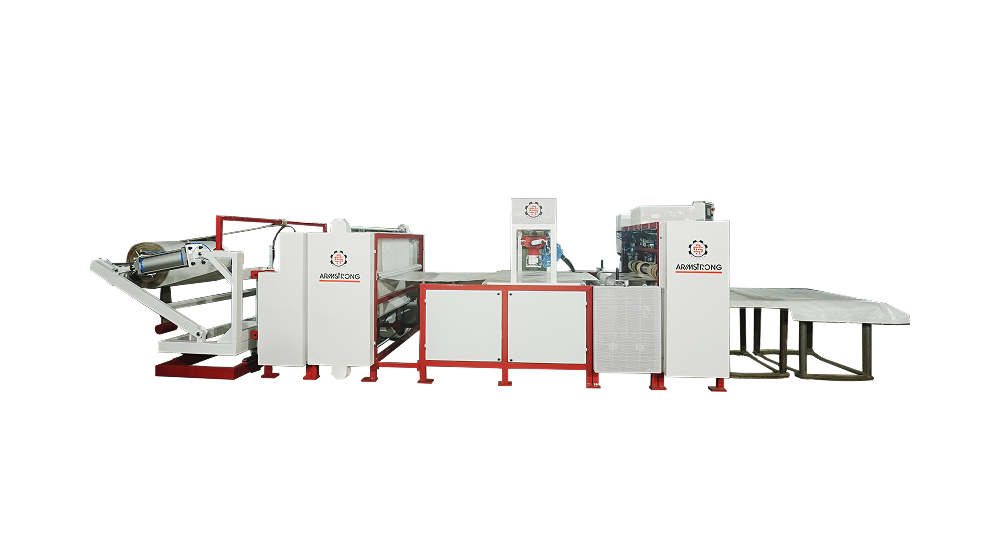

Ultrasonic Fabric Cutting Machine
The Armstrong FABTEK Ultrasonic Fabric Cutting Machine is a high-precision ultrasonic fabric cutting machine designed for cutting PP woven fabric used in FIBC jumbo bag manufacturing and industrial packaging applications. Built for speed, stability, and consistent production, the machine integrates advanced ultrasonic cutting technology with automated fabric handling systems especially for the medical and pharmaceutical industries.
Ultrasonic cutting seals the fabric edges during cutting, producing smooth and clean edges while eliminating tape fraying. This ensures superior finishing quality and professional results. With the capability to process fabric widths up to 1500 mm and fabric rolls up to 1000 kg, the machine delivers reliable performance for high-volume production lines.
Enquire Now Enquire NowArmstrong is a trusted Ultrasonic Fabric Cutting Machine Manufacturer and Ultrasonic Fabric Cutting Machine Supplier providing advanced machinery for the woven sack and FIBC industries worldwide. Our machines are engineered to deliver high cutting accuracy, stable production performance, and long-term reliability for industrial manufacturing environments.
The Armstrong Ultrasonic Fabric Cutting System integrates precision ultrasonic technology, servo-driven cutting mechanisms, and PLC-based automation to ensure smooth fabric feeding and consistent cutting results.
This advanced system helps manufacturers achieve:
The Armstrong ULTRASONIC FABRIC CUTTING MACHINE is widely used in industries where accurate cutting of woven fabrics and technical textiles is required for consistent production quality.
Typical industries include:
The Armstrong ultrasonic fabric cutting machine is designed to deliver consistent cutting accuracy and stable production performance using advanced ultrasonic technology and automated material handling systems.
| Parameter | Specification |
|---|---|
| Maximum width of fabric |
1500 mm |
| Minimum width of fabric |
800 mm |
| Maximum diameter of fabric roll |
1500 mm |
| Maximum weight of fabric roll |
1000 kgs |
| Cutting Length |
200–2500 mm |
| Parameter | Specification |
|---|---|
| Production Speed |
(1 mtr Length) Pcs/Min 10* Cut with Spout |
| Cutting Accuracy |
+/- 2 cm |
| Power Consumption |
11.5 KW |
| Machine Dimension (L x W x H) |
5.7 x 3 x 1.3 meters |
The machine uses a twin head ultrasonic cutting machine for fabric configuration that produces clean cuts while sealing the edges simultaneously. This ensures smooth finishing and prevents fabric fraying during production.
Advanced ultrasonic technology eliminates tape frange and delivers smooth fabric edges. This improves the overall finishing quality of woven sack and FIBC components.
A servo-motor-driven cutting system ensures accurate cutting length and consistent results across long production runs, improving productivity and reducing operator adjustments.
The integrated web guiding system maintains proper alignment of the fabric roll while feeding, ensuring stable cutting accuracy even at higher production speeds.
The accumulator unit maintains uniform fabric tension during unwinding, ensuring smooth feeding and uninterrupted cutting performance.
The machine is equipped with a PLC control system that allows operators to select AUTO or MANUAL modes and adjust parameters such as speed, batch counting, and cutting settings.
An optional ultrasonic spout cutting unit can be integrated for FIBC bag manufacturing, allowing precise cutting of spout openings for jumbo bag production.
