Heavy Duty Bag Closing Machine AS-802BC-ATC
Model: AS 800 BC-ATC / AS 802 BC-ATC

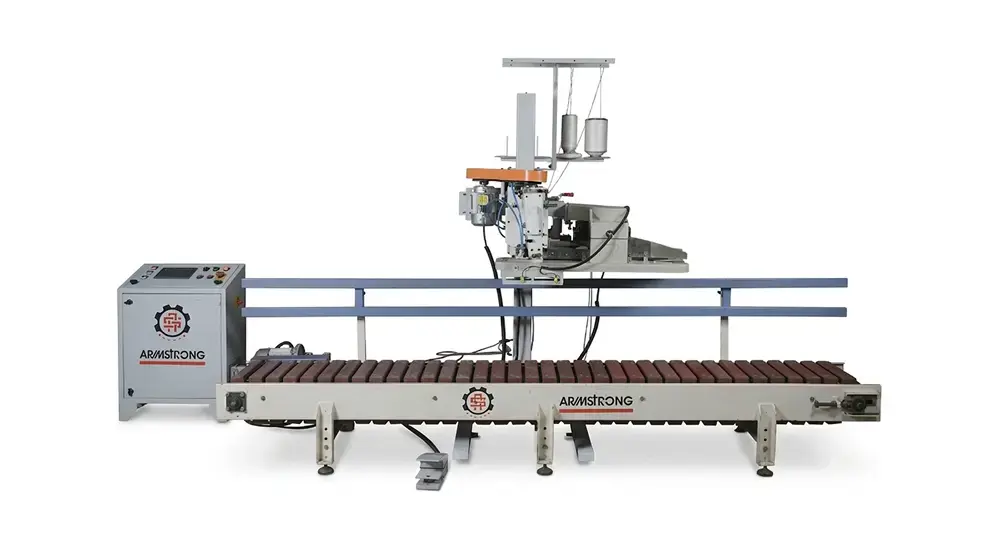

The heavy-duty bag closing machine AS 800 ATC is engineered to provide the user with high-speed, accuracy, reliability, and consistent closures of bags in a rough industrial environment. Designed to be robust and durable, this heavy-duty bag closing machine offers clean chain stitch closures with the lowest possible manual handling and greatest output.

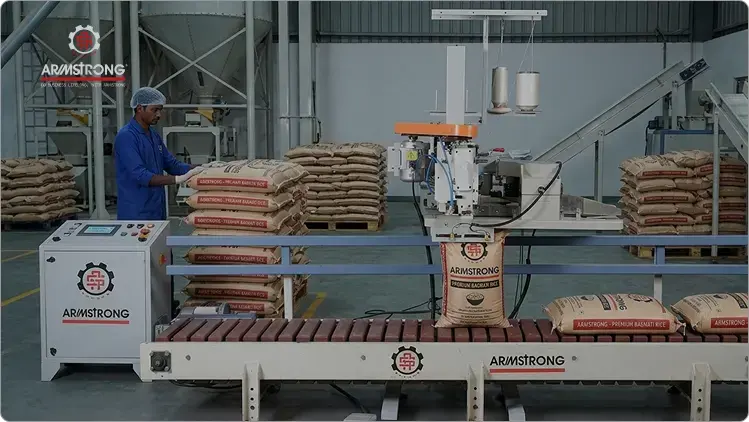

The Auto Thread Cutter and the ST-6000 Auto Bag Feeding System work together and transport each bag to the stitching head without interrupting continuous operation. With an elevated wooden slat conveyor, height-adjusting pedestal column, and a fully loaded control panel, it is the best choice for fertilizer, sugar, rice, flour, and cattle feed sectors.
Enquire Now Enquire NowArmstrong is a reliable and well-known manufacturer of heavy-duty bag closing machines. The organization supplies high-powered machines for industrial packaging units across India and also abroad.
Our heavy-duty bag closing machines models AS 800 ATC and AS 802 ATC, are equipped with precise sewing mechanisms and durable automated devices. Each bag is sealed at a high rate of speed, with a guaranteed strong stitch and absolute perfection. The machines are especially built for and capable of continuous heavy industrial production work shift after shift.
Designed for high-speed bag closing, it guarantees:
Designed to handle PP woven, HDPE, Jute, Hessian, Kraft paper, and Polyjute bags, the Armstrong heavy-duty bag closing machines offer an efficient and reliable option for all kinds of packaging units, regardless of their size.
Built for precision and high-speed industrial bag sealing, the AS 800 BC-ATC / AS 802 BC-ATC delivers consistent stitching performance and reliable automated operation across continuous production lines.
| Parameter | Specification |
|---|---|
| Model | AS 800 BC-ATC / AS 802 BC-ATC |
| Stitch Type | Single / Double Needle, Two / Four Thread Chain Stitch |
| Production Speed | 800 - 900 Bags per Hour |
| Stitch Width | 5 - 9 mm |
| Material Thickness | Up to 8 mm |
| Cutter Type | Electro-Pneumatic |
| Air Pressure | 6 kg/cm² |
| Air Consumption | 250 lit/min |
| Thread Type | Synthetic or Cotton - 20/6, 20/9 |
| Motor (Conveyor) | 1 HP, 3 Phase, 1440 RPM Rotofield Motor & Gear Box |
| Conveyor | Wooden Slat or Belt |
| Pedestal Column | Height Adjustable, 1440 RPM, Double Stroke Foot Switch |
| Control Panel | Switch Gears, 2 Sensors, 3 VFDs, HMI, Controller & Junction Box |
| Lubrication | Automatic |
The Armstrong AS 800 BC-ATC / AS 802 BC-ATC is designed to optimize each step of the industrial bag closing process, providing a fast and accurate output at each production stage.
It is used for high-speed, automatic stitching and sealing of filled industrial bags on continuous production lines.
It stitches PP woven, HDPE, Jute, Hessian, Polyjute, and Kraft paper bags using synthetic or cotton thread.
The AS 800 ATC is a single needle, two thread machine, while the AS 802 ATC is a double needle, four thread machine for stronger seams.
Yes, it is built for continuous heavy-duty industrial operation with sealed moving parts and an automatic lubrication system.
Yes, it features an air piston guillotine ATC system with auto thread scissors and crape tape cutter as standard.
They are widely used in fertilizer, sugar, rice, flour, cattle feed, chemicals, seeds, and food processing industries.
