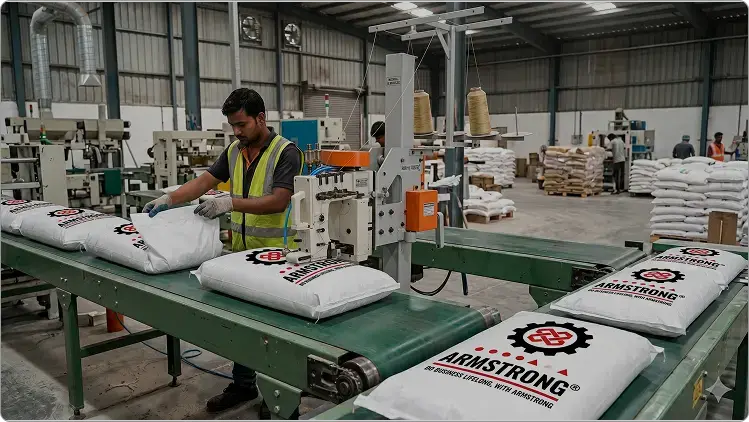

Pedestal Column Bag Closing Machine AS 800/802
Model: AS 800 BC / AS 802 BC
The AS 800/802 BC with Pedestal column is a heavy-duty, high-speed bag closing machine built for reliable and consistent sealing of filled bags across demanding industrial packaging environments. Engineered for strength and simplicity, it delivers clean four-thread chain stitch closures with minimal operator effort and maximum production efficiency.
Mounted on a heavy-duty manually adjustable pedestal column and paired with a sturdy conveyor, this bag closing machine with a conveyor is a complete, floor-ready bag closing solution designed to integrate seamlessly into any existing packaging line. Whether you are sealing PP woven, Jute, Hessian, or paper bags, it is the ideal choice for fertilizer, sugar, rice, flour, cattle feed, and powder milk industries.
Enquire Now Enquire NowBuilt for consistent heavy-duty bag closing, it ensures:
Armstrong's heavy-duty industrial bag closing machine with an integrated conveyor setup supports PP woven, PP laminated, Jute, Hessian, and paper bags, making it a versatile and reliable solution for packaging units of all scales.
Every parameter of the AS 800 BC / AS 802 BC keeps your production line moving from the stitching head down to the conveyor with zero compromise on seam quality or output consistency.
| Parameter | Specification |
|---|---|
| Model | AS 800 BC / AS 802 BC |
| Number of Needles | Two |
| Thread | Four |
| Seam Type | Four Thread Chain Stitch |
| Stitch Length Adjustment | 5 - 9 mm |
| Maximum Speed | 1800 RPM |
| Production Capacity | 900 - 1000 Bags/Hour |
| Needle Size | DR x 2 #26 (GROZ-BECKERT) |
| Thread Type | Cotton or Synthetic |
| Bag Material | PP Woven Fabric, PP Laminated Woven Fabric, Jute, Hessian & Paper |
| Bag Feed In | Manual Feed In |
| Thread Cutter Type | Mechanical Thread Cutter |
| Lubrication System | Manual Oil Feed & Oiler System |
| Sewing Capacity | Up to 18 mm |
| Sewing Machine Motor | 0.5 HP, 3 Phase, 1350 RPM |
| Net Weight | 50 Kg |
| Conveyor Motor | 1 HP, 3 Phase, 1350 RPM |
| Conveyor Type | Wooden Slat or Green Belt Type |
| Conveyor Dimension | 2000 × 390 × 275 mm |
| Customization | Customized Option Available |
| Pedestal Column Height Adjustment | 300 - 950 mm |
| Pedestal Column Structure | Heavy Duty Pedestal Column |
| Pedestal Column Adjustment Type | Manual Height Adjustment |
| Pedestal Column Application | Suitable for Bag Closing Machine with Conveyor Setup |
Designed to keep up with the pace of modern industrial packaging, this machine combines mechanical precision with a robust build that stands up to continuous, high-volume production demands.
It is used for high-speed, reliable four-thread chain stitch sealing of filled industrial bags on continuous production lines.
It stitches PP woven, PP laminated woven fabric, Jute, Hessian, and paper bags using cotton or synthetic thread.
It delivers a production capacity of 900-1000 bags per hour at a maximum speed of 1800 RPM.
Yes, the heavy-duty pedestal column offers manual height adjustment from 300 to 950 mm to suit different conveyor setups.
It is available with a wooden slat or green belt type conveyor measuring 2000 × 390 × 275 mm, with customization options.
It is widely used in fertilizer, sugar, rice, flour, cattle feed, powder milk, chemical, and general industrial packaging industries.
