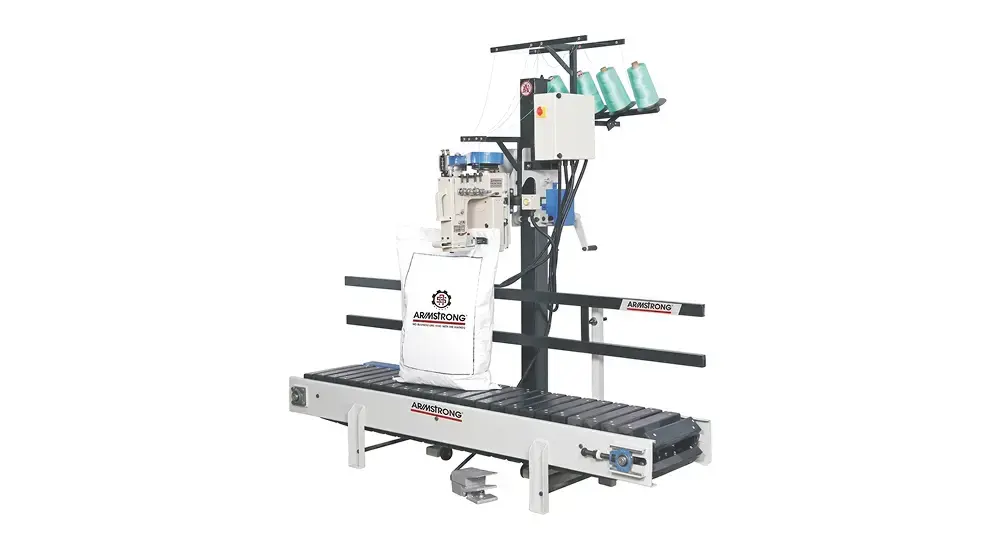

Heavy Duty Bag Closing Machine with Column & Conveyor AS802
Model: AS 802 BC
When packaging lines run at full speed, there is no room for inconsistency. The Heavy Duty Bag Closing Machine AS-802 is built for exactly those conditions, delivering a strong, clean four-thread chain stitch closure on every single bag, without slowing down or compromising seam quality.
Paired with an adjustable column and an integrated conveyor, the AS 802 BC Bag Sewing Machine goes beyond just stitching; it becomes a complete, self-contained bag closing solution. From PP woven and laminated bags to Jute, Hessian, and paper, if it needs to be sealed fast and sealed right, the AS 802 BC is built for it.
Enquire Now Enquire NowThe Reliable Industrial Bag Closing Machine Built for Industry Demands
For over four decades, Armstrong has designed machines that do not just meet production expectations; they outlast them. Every unit is assembled with certified components, tested under real factory conditions, and built to hold up across the most demanding packaging environments.
What sets Armstrong apart is not just the machine itself; it is the thinking behind it. The industrial bag closing machine with a conveyor setup is designed as a system, where the stitching head, column, and conveyor work in sync to eliminate production bottlenecks and keep output moving at full capacity.
Where the AS 802 BC makes the difference:
- Zero compromise on seam strength across every bag type
- Production output of 900-1000 bags per hour
- Dust-proof sealed housing for uninterrupted operations
- Fully integrated conveyor for smooth continuous bag flow
- Flexible setup adaptable to any production line configuration
From fertilizer plants to food processing units, Armstrong's heavy-duty bag closing machine AS-802 is the backbone of packaging operations that need to automate and speed up heavy-duty packaging without a single weak link in the chain.
Applications
Our Process: From Idea to Installation
Technical Specifications
Armstrong is a trusted manufacturer of Heavy Duty Bag Closing Machine AS 800/802, supplying reliable and durable bag closing solutions to industrial packaging operations across India and global markets for over four decades.
Where every number counts - this machine is precisely made to match the demands of modern industrial bag closing lines.
| Parameter | Specification |
|---|---|
| Model | AS 802 BC |
| Number of Needles | Two |
| Thread | Four |
| Seam Type | Four Thread Chain Stitch |
| Stitch Length Adjustment | 5-9 mm |
| Maximum Speed | 1800 RPM |
| Production Capacity | 900-1000 Bags/Hour |
| Needle Size | DR x 2 #26 (GROZ-BECKERT) |
| Thread Type | Cotton or Synthetic |
| Bag Material | PP Woven Fabric, PP Laminated Woven Fabric, Jute, Hessian & Paper |
| Bag Feed In | Manual Feed In |
| Thread Cutter Type | Mechanical Thread Cutter |
| Lubrication System | Manual Oil Feed & Oiler System |
| Sewing Capacity | Up to 18 mm |
| Net Weight | 50 Kg |
| Sewing Machine Motor | 0.5 HP, 3 Phase, 1350 RPM |
| Conveyor Motor | 1 HP, 3 Phase, 1350 RPM |
| Conveyor Type | Wooden Slat or Green Belt Type |
| Conveyor Dimension | 2000 × 390 × 275 mm |
| Customization | Customized Option Available |
| Height Adjustment | 300-950 mm (Sewing Machine) |
Key Features
Every detail of the AS 802 BC is built with one goal in mind: keeping your production line moving at full speed without a single compromise on quality.
- Four Thread Chain Stitch for Uncompromised Seam Strength: Every closure is reinforced for the kind of load-bearing strength that bulk industrial packaging demands.
- 1800 RPM at Full Tilt: At peak speed, the AS 802 BC closes 900-1000 bags every hour, a rate that keeps even the most demanding production schedules on track.
- Stitch Length That Adapts to You: A 5–9 mm adjustable stitch range means the machine flexes to your material and seam requirements, not the other way around.
- Sealed for the Shop Floor: Every moving part inside the housing is fully shielded from dust, dirt, and debris, because the factory floor is no place for a fragile machine.
- Column Height That Works for Your Line: With height adjustment from 300 to 950 mm, the machine fits your conveyor setup.
- Conveyor Options That Fit Your Floor: Wooden slat or green belt type, 2000 × 390 × 275 mm, with customization available, the conveyor is built around your production line requirements.
FAQs – Heavy Duty Bag Closing Machine with Column & Conveyor AS802
What is the AS 802 BC with Column and Conveyor used for?
It is a high-speed double needle bag closing machine built for continuous four-thread chain stitch sealing of filled industrial bags.
What bag materials can the AS 802 BC handle?
PP woven, PP laminated woven fabric, Jute, Hessian, and paper bags, sealed using cotton or synthetic thread.
How fast does the AS 802 BC operate?
At a maximum speed of 1800 RPM, it closes 900-1000 bags per hour consistently across continuous production runs.
Is the column height adjustable on the AS 802 BC?
Yes, the sewing machine height adjusts manually from 300 to 950 mm to match any conveyor or line height requirement.
What conveyor types are available with this machine?
Wooden slat or green belt type conveyor, measuring 2000 × 390 × 275 mm, with customization options available on request.
Which industries is the AS 802 BC best suited for?
Fertilizer, sugar, rice, flour, cattle feed, powder milk, chemicals, and any industry running high-volume industrial bag sealing operations.
