Model: BaffTek 3

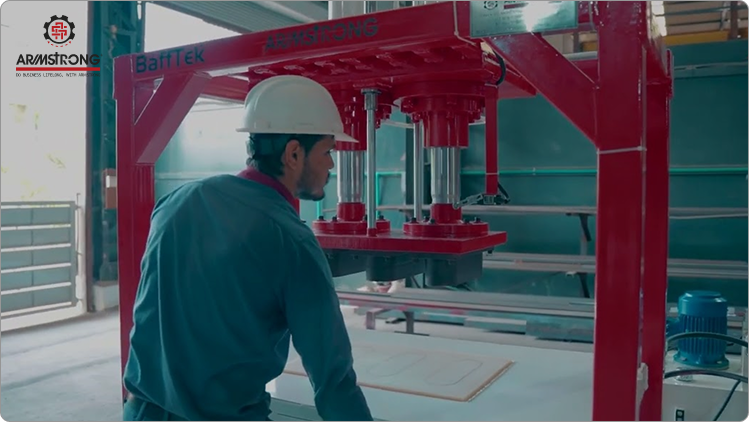

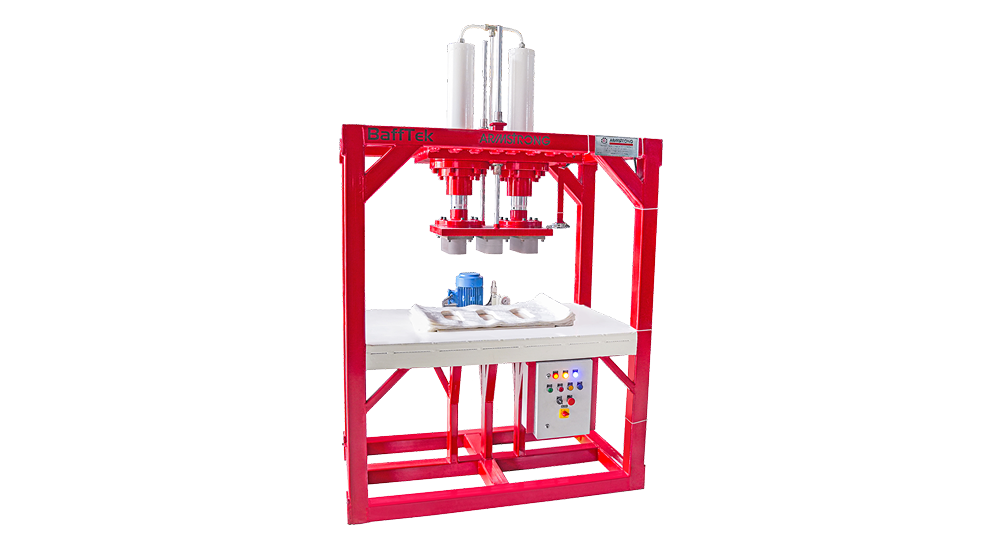

The FIBC Baffle Punch Machine is a compact, user-friendly solution designed to cut costs, save time, and enhance productivity in FIBC/Jumbo bag manufacturing. Supporting both the capsule and oval-shaped cold cuts, it ensures baffle bags maintain their cubical shape for stable stacking and easy transport.

The semi-automatic operation provides accuracy with controlled efficiency, making it suitable for varied production needs. With an optional cold cut spout feature, this baffle cutting machine offers versatility and consistent performance for packaging applications across industries.

Enquire Now Enquire Now Enquire Now Enquire Now

USPs

Precise Punching: Supports capsule and oval-shaped cold cuts, ensuring accurate baffle alignment for consistent bag shape.

Cost & Time Efficiency: The semi-automatic design of the FIBC panel cutting machine reduces manual effort, and lowers operational costs. Not just this it also improves overall productivity.

Stable Bag Structure: Delivers cubical shape retaining by enabling easy stacking with minimized bulging, and optimized storage & transport

Versatile Operation: Optional cold cut spout feature adds flexibility in order to meet the specific and versatile FIBC manufacturing and packaging requirements.

Applications

Our Process: From Idea to Installation

Previous Next

Technical Specifications

Parameter Specification
Model

BAFFTEK-01, BAFFTEK-03

Table Size

1200 mm x 600 mm, 1400 mm x 700 mm

Table Height

850 mm, 850 mm

Stroke Length

350 mm, 350 mm

Number of Hydraulic Cylinders

1, 2

Hydraulic Cylinder Capacity

20 Ton, 35 Ton

Maximum Hydraulic Working Pressure

160 bar, 150 bar

Oil Tank Capacity

150 liters (68 Grade), 150 liters (68 Grade)

Parameter Specification
Baffle Size (Capsule Shape)

300 mm x 100 mm, 300 mm x 100 mm

Number of Baffles

1, 3

Operation Type

Semi-Automatic, Semi-Automatic

Power Consumption

4.5 Kw, 4.5 Kw

Power Supply

415 V, 3-Phase, Neutral & Earthing, 50-60 Hz, 415 V, 3-Phase, Neutral & Earthing, 50-60 Hz

Machine Dimensions (L x W x H)

2000 mm x 1500 mm x 2600 mm, 2100 mm x 1700 mm x 2600 mm

Machine Weight

1300 kg (Approx.), 1450kg (Approx.)
