Model: FabTek

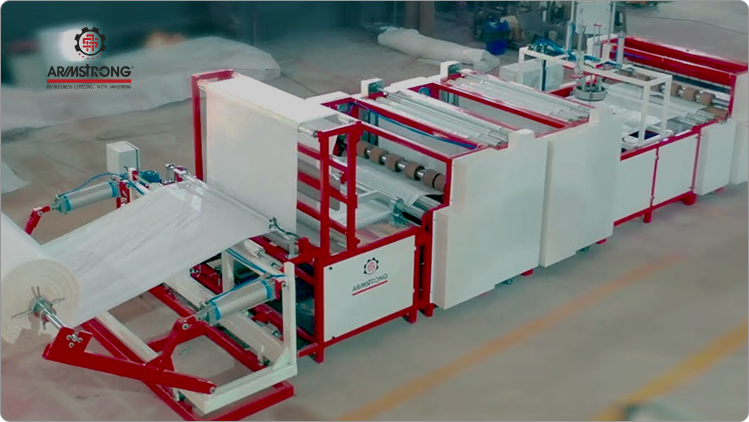

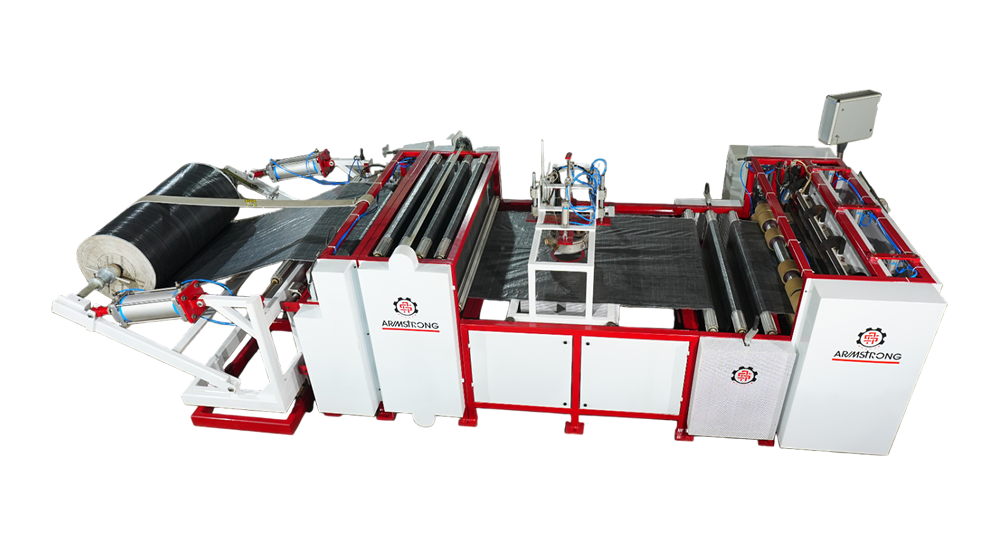

Our FIBC cutting machine is engineered for precision and especially high-speed cutting of tubular and flat, both kinds of fabrics. There are two variants of our FIBC jumbo bag cutting machine(1.4 & 2.2). The machine supports cutting in two styles- star cut and round spout cut with options of hot/cold and zigzag cutting options.

Engineered for high-volume industrial use, the FIBC jumbo bag cutting machine keeps a check on the accuracy, precise cutting with waste reduction, baked by a user-friendly PLC-based system.

Enquire Now Enquire Now Enquire Now Enquire Now

USPs

High-Precision Cutting: Delivers exact dimensions and clean edges for FIBC and industrial fabrics, ensuring consistent quality and reduced rework across production runs.

Robust Build Quality: Engineered with heavy-duty materials and components, the big bag cutting machine guarantees long-term durability, reliable performance, and minimal downtime under demanding operations.

Optimized Productivity: Designed to reduce material waste and minimize manual intervention, the FIBC cutting machine improves overall efficiency, speed, and output in cutting processes.

User-Friendly Operation: Equipped with intuitive controls and reliable automation, it enables smooth handling, consistent performance, and reduced operator training requirements for better productivity..

Applications

Our Process: From Idea to Installation

Previous Next

Technical Specifications

Parameter Specification
Fabric type

Tubler or Flat fabric

Maximum width of fabric

2200mm

Maximum diameter of fabric roll

1500 mm

Maximum weight of fabric roll

1000 kgs

Cutting Length

200-25000 mm

Round spout

30cm with machine

Cross punch

20cm with the machine

Parameter Specification
Bottom

Straight cut / Zigzag Cut ( Any one With Machine )

Production Speed without spout

1 meters Length 16 Pcs/ Min*

Production Speed with spout

1 meters Length 13 Pcs/ Min*

Cutting Accuracy

+/-2% mm

Power Consumption

15 W

Machine Dimension(L x W x H)

5.7 x 2.9 x 1.3 meter
