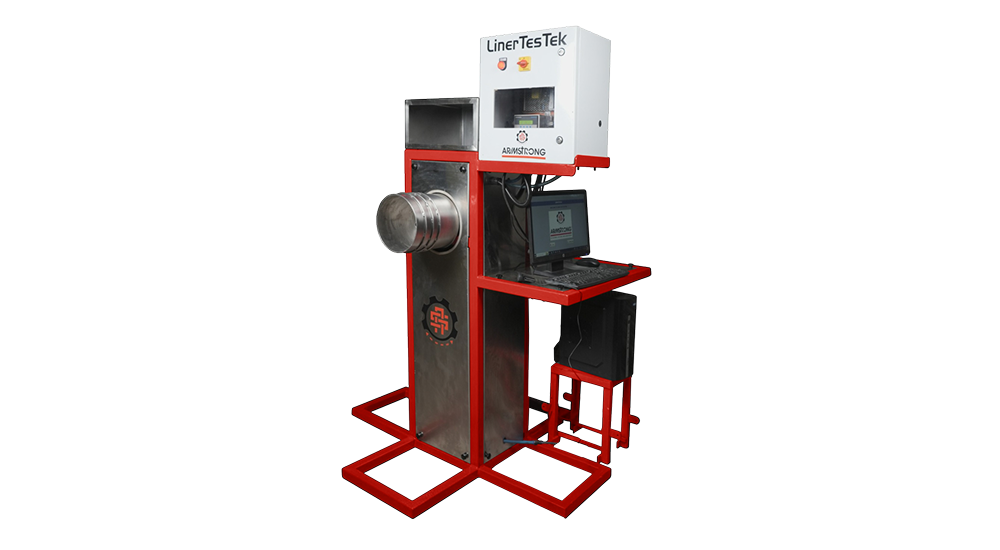

Liner Testing Machine
Model: TesTek

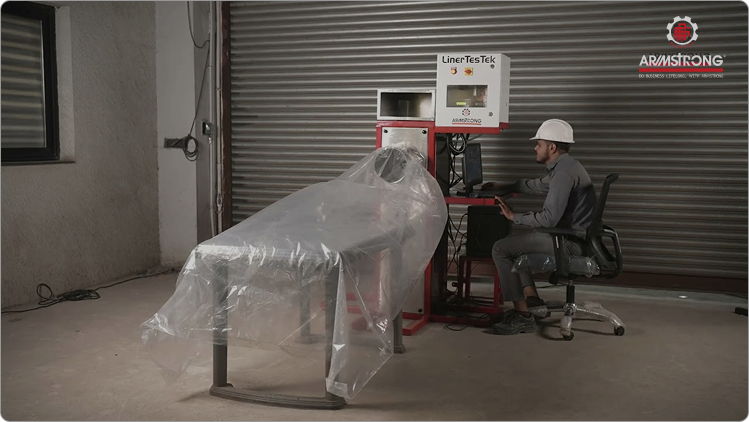

The LINER TESTEK is a precision-engineered, fully automated liner testing machine designed specifically for the FIBC (Flexible Intermediate Bulk Container) industry. It performs airtightness and integrity testing on liners through automated air filling, digital monitoring, and photographic documentation, all controlled via an integrated PLC and SCADA system. This machine ensures quality control, operational efficiency, and compliance with industrial testing standards.
Enquire Now Enquire Now Enquire Now Enquire NowAutomated Vacuum Testing: The FIBC liner testing machine performs automatic air filling and vacuum tests on liners, ensuring accurate, consistent, and reliable integrity validation without any manual errors.
Digital Monitoring System: Advanced digital monitoring provides real-time data tracking, ensuring complete accuracy, easy traceability, and dependable results for every liner tested.
Integrated PLC & SCADA: Everything is fully controlled with PLC and SCADA systems, enabling smooth automation, efficient operation, and strict compliance with industrial liner testing standards.
Comprehensive Quality Control: That’s not it! The machine also generates photographic documentation and detailed inspection records, ensuring thorough quality checks, improved efficiency, and trusted compliance for the FIBC industry.
Our Process: From Idea to Installation
| Parameter | Specification |
|---|---|
| Pressure Transmitter | 1 Unit – Range: 0 to 100 mbar |
| Air Filling System | Automated system with air blower and compressed air supply |
| Flow Meter | 1 Unit – Range: 2 to 105 CFM |
| Pressure Regulator | 1 Unit – Range: 0.05 to 10 bar |
| Liner Compatibility | Compatible with all types of liners used in FIBC bags |
| Machine Control | Computer-controlled system with PLC and SCADA integration |
| Test Report Generation | Automatic report generation with digital storage capability |
| Electrical Panel | Fully automatic panel with integrated safety and control components |
| Parameter | Specification |
|---|---|
| Web Camera | 1 Unit – Captures high-resolution images before and after each test cycle |
| Documentation System | Digital storage of test data and photographic records |
| Required Air Pressure | 6 Ba |
| Power Consumption | 2 Kw |
| Power Supply | Single Phase, 230V AC |
| Machine Dimensions ( L X W X H ) | 1200 mm X 1200 mm X 1800 mm |
| Machine Weight | 250 Kg ( Approx ) |
