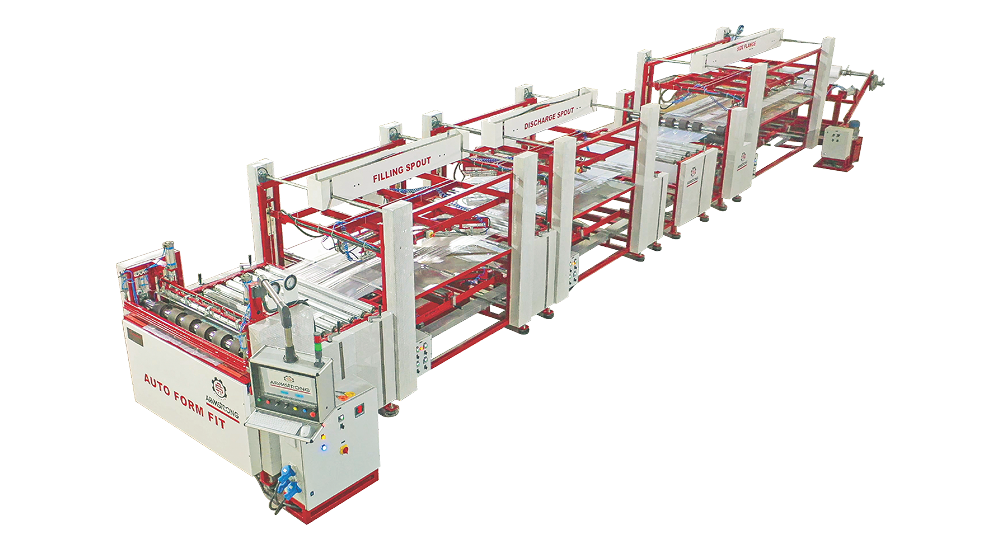

Form Fit Liner Sealing Machine
Model: LinearTek FF
The Form Fit Bottle Shape Liner Sealing System is a fully automatic, high-precision solution engineered for producing bottle-shaped liners. It’s designed for industrial applications, and performs spout sealing, side sealing, bottom sealing, cutting, and perforation in a single streamlined process.
Equipped with PLC and servo control, it ensures accuracy, consistency, and reliability. Ideal for sealing LDPE and HDPE liners, our jumbo bag liner making machine is the perfect choice for FIBC and bulk packaging liner manufacturers seeking superior quality and efficiency.

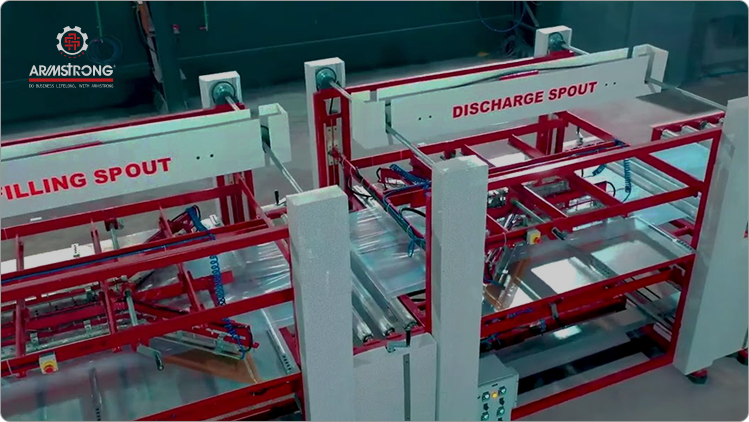

Enquire Now Enquire Now Enquire Now Enquire NowAll-in-One Sealing Solution: The machine performs spout sealing, side sealing, bottom sealing, cutting, and perforation in one systematic, fully automated operation with unmatched efficiency.
High Precision Performance: The system ensures accurate, consistent seals with superior reliability in every production cycle as equipped with advanced PLC and servo control.
Versatile Liner Compatibility: Our FIBC bottle shape liner sealing machine is the go-to solution for LDPE and HDPE liners, making it the perfect choice for FIBC and bulk packaging liner manufacturers worldwide.
Enhanced Productivity & Quality: Each machine is powered by precision engineering to reduce errors, improve sealing quality, and significantly boost overall production efficiency and consistency.
Our Process: From Idea to Installation
| Parameter | Specification |
|---|---|
| Production Capacity | Up to 4 liners per minute (complete sealing in one operation) |
| Processed Material | Gusseted or tubular Liner |
| Liner Specification | LDPE: 60–200 microns, HDPE: 40–150 microns |
| Maximum Liner Width | 1400 mm |
| Minimum Liner Width | 600 mm |
| Sealing Types | Side Sealing , filling spout sealing , discharge spout sealing & bottom sealing |
| Sealing Technology | Thermal Sealing |
| Sealing Width | 10 mm* |
| Spout Length | 680 mm |
| Neck Angel Length | 780 mm* |
| Bottle Neck Sealing Angle | 44 degree* |
| Body Length (Adjustable) | 500 mm – 2900 mm |
| Parameter | Specification |
|---|---|
| Top & Bottom Diameter | Adjustable between 200 mm – 550 mm |
| Side Flange Sealing Length | 2200 mm* |
| Side Flange Distance | Adjustable from 30 mm – 100 mm |
| Bottom Sealing Distance | Fully adjustable as per liner design |
| Control System | PLC-based system with computerized Scada Application |
| Power Supply | 415 V, 3-Phase, Neutral & Earthing, 50–60 Hz |
| Power Consumption | 24 Kw |
| Air Pressure Requirement | 8 bar ( 1000 Ltr / Min ) |
| Roll Lifting Capacity | Up to 600 kg (with integrated web aligner |
| Machine Dimensions (L × W × H) | 17,000 mm × 2,300 mm × 2,100 mm* |
| Machine Weight | 7500 Kg ( Approx ) |
Engineered for high-performance lamination, cutting, and recycling in heavy-duty tarpaulin production.
