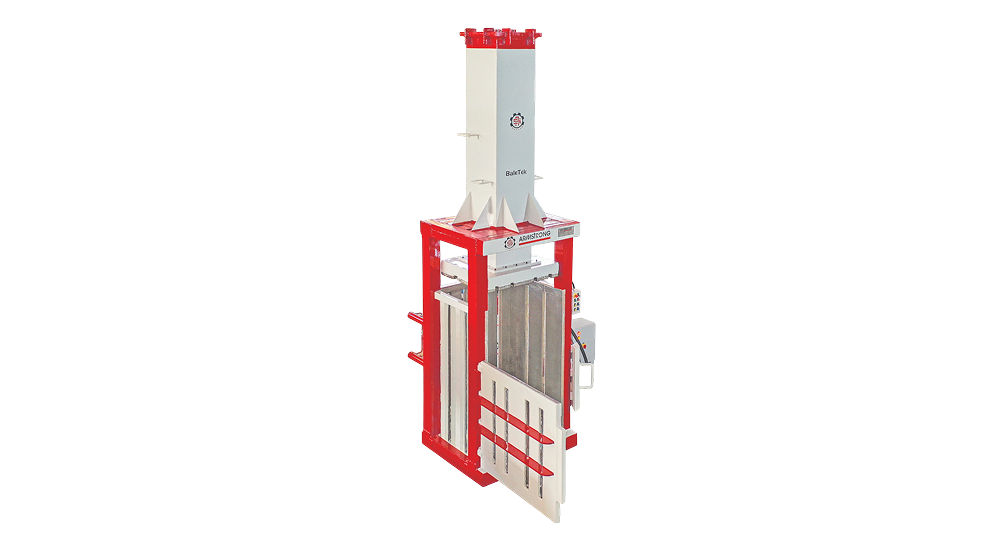

Hydraulic Bale Press Machine
Model: BaleTek
Our big bag bailing press machine is a heavy-duty vertical baler engineered for compact baling of FIBC bags and plastic packaging. With a tough 40-ton capacity, it ensures reliable performance, reduces transportation costs, and optimizes storage space. Designed with precision components and strong structural integrity, it enhances material handling efficiency with minimal maintenance.
The hydraulic bale press machine is an ideal solution for industries managing high volumes of packaging waste, and delivering a performance that’s cost-effective, space-saving, and involves long-lasting compaction.
Enquire Now Enquire Now Enquire Now Enquire NowHigh Compaction Power: The FIBC bag baling press machine has a 40 ton capacity with powerful compression, reducing bulky packaging waste into compact bales for easier handling.
Cost & Space Efficiency: Due to the small bail size, there are lower transportation costs. It also optimizes warehouse storage, improving overall operational efficiency.
Robust & Reliable Design: Precision-engineered with durable components and strong structure, the hydraulic bale press machine guarantees reliable, long-term, and heavy-duty baling performance in industries.
Low Maintenance Operation: Engineered for continuous use, the big bailing press machine ensures smooth, reliable baling with minimal downtime and reduced maintenance requirements for industries.
Our Process: From Idea to Installation
| Parameter | Specification |
|---|---|
| Machine Type | Four Pillar Hydraulic Press |
| Frame Design | Three sides closed, one side openable with lever arrangements |
| Pressing Capacity | Up to 120 Tonnes |
| Maximum Pressure | 200 Bar |
| Cabin Dimensions | 95 cm x 110 cm x 230 cm (customizable as per customer requirements) |
| Stroke Length | 1700 mm |
| Stroke Speed | Adjustable, up to 3 meters per minute |
| Pusher Cylinders | 2 nos |
| Parameter | Specification |
|---|---|
| Hydraulic Oil Capacity | 500–550 Liters |
| Recommended Oil Type | Hydraulic Oil – Grade 68 * |
| Power Consumption | 18 Kw |
| Power Supply | 415 V, 3-Phase with Neutral & Earthing, 50–60 Hz |
| Control Pane | `Semi-Automatic |
| Machine Dimensions | 3000 mm X 2400 mm X 5250 mm |
| Machine Weight | 6250 kg ( Approx.) |
Engineered for high-performance lamination, cutting, and recycling in heavy-duty tarpaulin production.
