Model: GlueTek

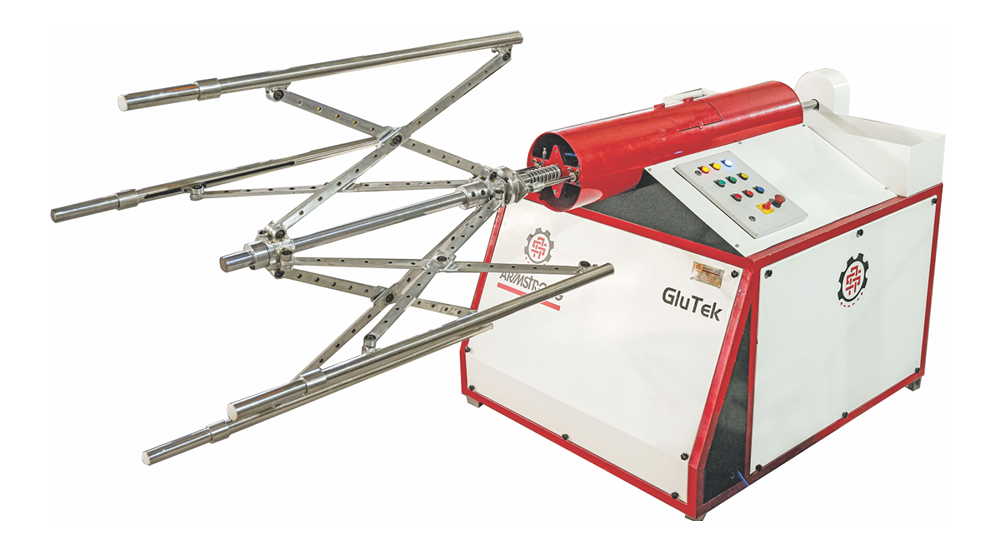

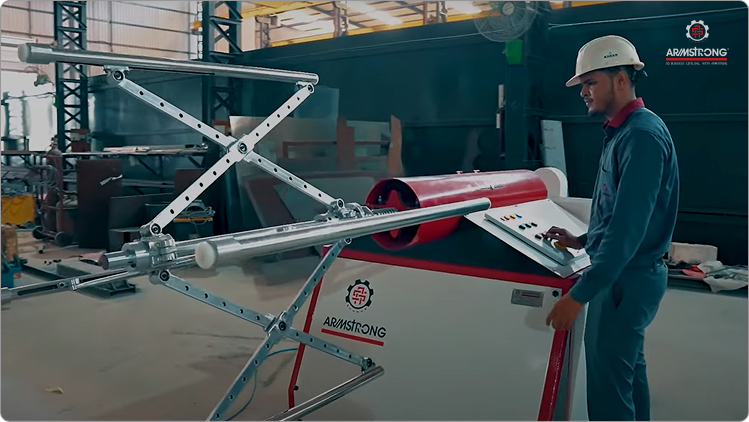

The Liner Bag Opener Machine is a precision-engineered solution designed for efficient and wrinkle-free liner insertion into FIBC bags. Built for the bulk packaging industry, it integrates pneumatic actuators and a high-pressure air system to ease and align the liner placement .

With its semi-automatic workflow, operators can quickly position liners, apply adhesive manually, and mount bags with accuracy. This machine significantly enhances productivity, consistency, and overall efficiency, making it an essential tool for modern FIBC bag production lines.

Enquire Now Enquire Now Enquire Now Enquire Now

USPs

Wrinkle-Free Liner Insertion: Our machine ensures smooth, wrinkle-free liner placement inside FIBC bags, improving packing quality and maintaining product safety during transportation.

Pneumatic & Air System: The FIBC jumbo bag liner opening machine uses pneumatic actuators and high-pressure air to streamline liner opening, enabling faster, more efficient, and precise liner placement.

Semi-Automatic Workflow: Operators can easily position liners, apply adhesive manually, and mount bags accurately, ensuring higher productivity with lesser handling errors.

Enhanced Productivity & Consistency: Get standardized liner insertion with lower downtime. The machine delivers with full consistency and reliable performance to meet requirements of large-scale FIBC bag production.

Applications

Our Process: From Idea to Installation

Previous Next

Technical Specifications

Parameter Specification
Air-Driven Expanded Arm

Fixed, 1-meter (SS grade)

Adjustable Arm Length

Extends from 1 to 2 meters(200 mm adjustment

Opening Width

600 mm to 1250 mm

Air Blow & Suction

3 HP high-pressure blower with suction

Rotation Control

Manual

Control Panel

Manual interface with electrical integration

Parameter Specification
Air Filtration

50-micron filters on both suction and blower sides

Power Consumption

3 Kw

Power Consumption

415 V, 3-Phase with Neutral & Earthing, 50–60 Hz

Air Pressure

6 bar

Machine Dimensions (L×W×H)

3200 mm × 1300 mm × 1850 mm

Machine Weight

525 kg ( Approx.
