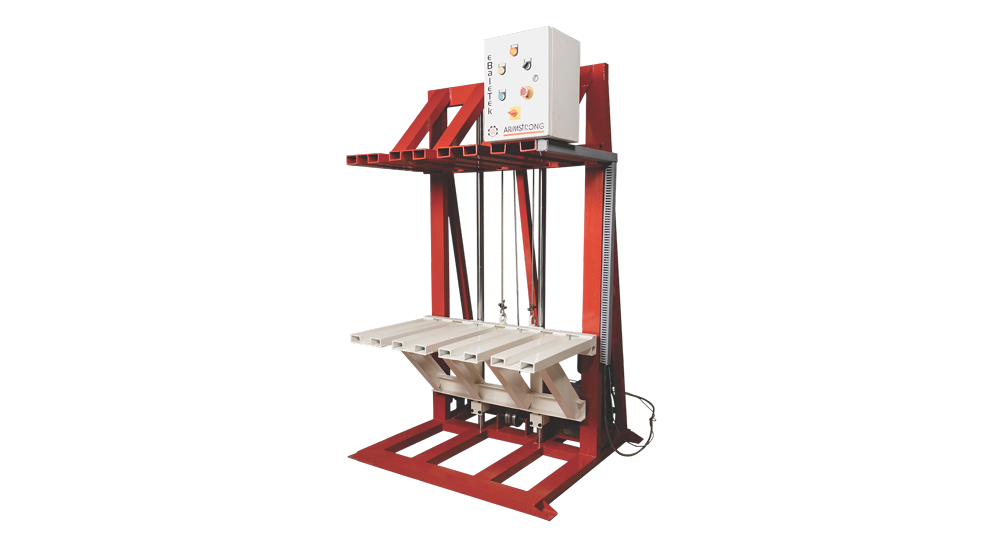

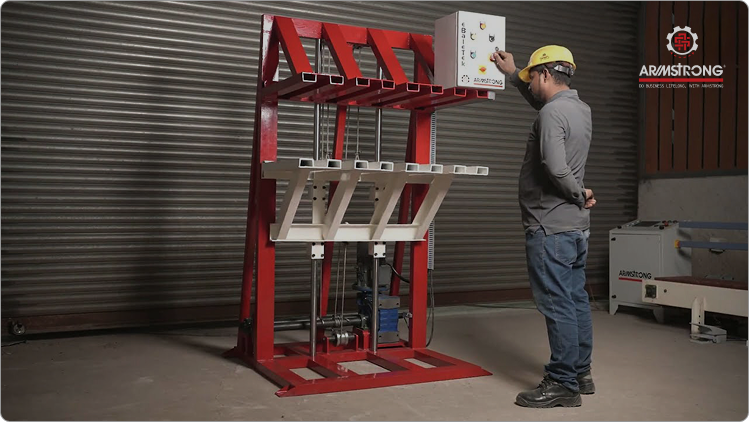

Electrical Bale Press Machine
Model: E Bale Tek
Our big bag bale press machine is a compact and efficient solution for compressing smaller batches of 10–12 FIBC bags. Designed to complement large-scale baling systems, it streamlines pre-pressing tasks, reduces manual effort, and improves overall productivity.
With precise bale alignment and an operator-friendly interface, it ensures smooth and reliable operations. The bale machine is ideal for industries seeking a cost-effective, high-performance, and space-saving option for systematic bale processing and improved handling efficiency.
Enquire Now Enquire Now Enquire Now Enquire NowCompact & Efficient Design: The machine is compact yet powerful. It’s ideal for compressing smaller batches of 10–12 FIBC bags with maximum efficiency.
Enhanced Productivity: By simplifying pre-pressing tasks, the heavy duty bale press machine reduces manual labor, accelerates bale preparation, and ensures smooth production flow across operations.
Precise Bale Alignment: The machine has an advanced alignment system that ensures accurate bale positioning, delivering consistent results while minimizing errors and enhancing overall bale quality.
Operator-Friendly Interface: The bale press machine provides easy operation with a reduced workload, and reliable performance for daily pressing tasks
Our Process: From Idea to Installation
| Parameter | Specification |
|---|---|
| Capacity | 10–12 FIBC Bags per Cycle |
| Pallet Size | 600 mm × 1100 mm |
| Daylight Gap | 850 mm |
| Compression Speed | 50 mm/sec |
| Motor Capacity | 3 HP Electric Motor |
| Parameter | Specification |
|---|---|
| Power Consumption | 2.2 Kw |
| Power Supply | 415 V, 3-Phase with Neutral & Earthing, 50–60 Hz |
| Operation Type | Manual (Push Button Control) |
| Machine Dimensions (L×W×H) | 1250 mm × 1100 mm × 2000 mm |
| Machine Weight | 650 kg ( APPROX. |
Engineered for high-performance lamination, cutting, and recycling in heavy-duty tarpaulin production.
