product

Model: BelTek

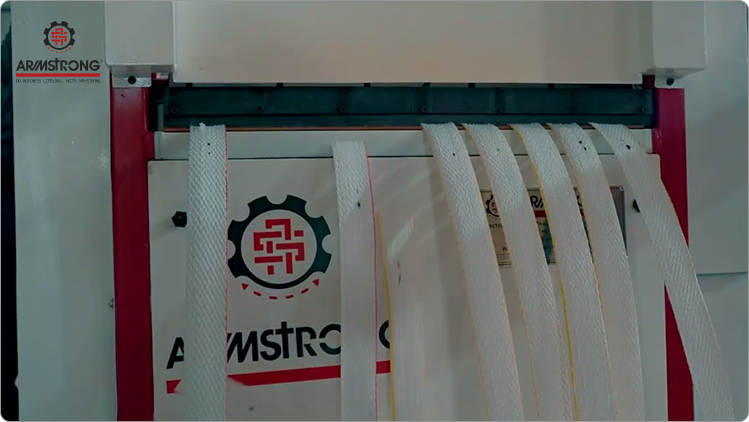

Our FIBC belt cutting machine offers a high-performance, fully automatic solution for FIBC (Jumbo Bag) manufacturers. Built for speed, accuracy, and reliability, it can cut up to 10 webbing belts at once with precise length control and multi-point marking.

This advanced system helps reduce material waste, lowers manual effort, and boosts overall productivity. With its robust design and consistent output, our FIBC ribbon cutting machine is an ideal choice for achieving efficiency and maintaining uniform quality in large-scale production.

Enquire Now Enquire Now Enquire Now Enquire Now

USPs

Multi-belt cutting: The machine can cut up to 10 belts at one go without compromising on the quality and consistency. This saves time and increases production capacity.

Precise cutting: It delivers accurate belt cutting with advanced length control, consistent dimensions and improved product quality with each cycle. This ensures minimal rework during manufacturing.

Integrated Marking System: The FIBC webbing cutting machine comes with multi-point marking for precise alignment, this system improves assembly accuracy, bag finishing quality, and overall production consistency.

Productivity & Cost Savings: Our system is designed to reduce labor effort and material waste, while maintaining high-speed performance, boosting productivity, and ensuring reliable, long-term efficiency.

Applications

Our Process: From Idea to Installation

Previous Next

Technical Specifications

Parameter Specification
Cutting Width Range

35 mm – 125 mm (Supports 5 to 10 belts)

Marking Length Range

300 mm – 1700 mm (Up to 50 programmable markings)

Number of Webbing Rolls

Up to 10 rolls (for belts ≤ 50 mm)

Maximum Roll Diameter

1000 mm (Approx. 10–12 kg per roll)

Cutting Length Range

200 mm – 50,000 mm

Cutting Speed

9 cuts/minute (10 belts at a time)

Parameter Specification
Cutting Accuracy

± 2 Cm

Power Consumption

6 Kw

Power Supply

415 V, 3-Phase, Neutral & Earthing, 50–60 Hz

Air Pressure Requirement

6 bar

Machine Dimensions (L × W × H)

3500 mm × 1550 mm × 1700 mm

Machine Weight

820 Kg ( Approx )
